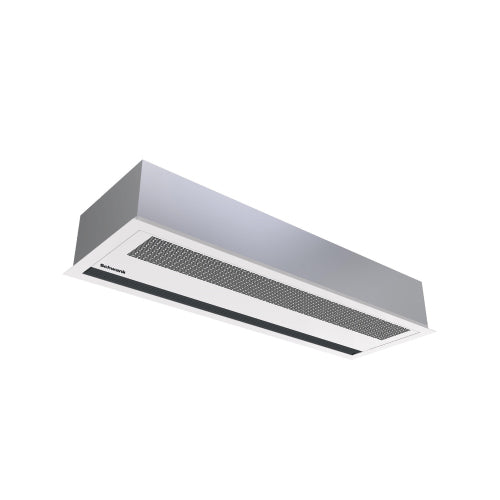

Schwank Select12 72" Heated Air Curtain - Recessed
Schwank Select12R 72" Heated Air Curtain - Recessed
The Schwank Select12R 72" Heated Air Curtain (model AC-TE72) delivers superior climate control performance with the elegance of recessed mounting for commercial buildings. This AMCA certified unit combines sophisticated engineering with discreet design to transform your airflow experience.
Performance Specifications
-
Dimensions: 83.12" × 61.52" (Length × Width)
-
CFM Rating: 2250 cubic feet per minute for exceptional coverage
-
Sound Level: 75 dB(A) with 57 dB(A) sound pressure
-
Heat Output: Available in multiple configurations:
- 208V: 8/13 kW
- 480V: 8/16 kW
- 600V: 8/16 kW
-
Motor Power: 270W energy-efficient EC motor with variable speed control
-
Weight: 112 lbs regardless of voltage configuration
Key Features
-
AMCA Certification: Officially certified commercial air curtain
-
Integrated Controls: Built-in keypad controller plus wireless remote control
-
ECO Mode: Smart energy-saving features reduce operating costs
-
Versatile Installation: Recessed mounting up to 11ft high with included suspension brackets
-
Sleek Hidden Design: Blends seamlessly into ceiling architecture
-
Efficient Performance: Quick ramp-up time ensures immediate effectiveness
-
Remarkably Quiet: Unique front grill and top air intake design minimize noise and vibration
-
Multiple Options: Available in 36", 60", and 72" widths to suit various doorway sizes
-
Convenience: Door switch included for automatic operation
The Select12R Series is built with premium components and backed by Schwank's 5-year limited warranty. Its modern recessed design creates an unobtrusive appearance while delivering powerful climate separation for commercial entrances.
Ideal for upscale retail environments, office buildings, healthcare facilities, and other commercial spaces where aesthetic considerations are as important as performance, the Schwank Select12R 72" Heated Air Curtain combines sophisticated engineering with architectural elegance for the ultimate airflow solution.
