Schwank Select10 72" Heated Air Curtain
Schwank Select10 72" Heated Air Curtain

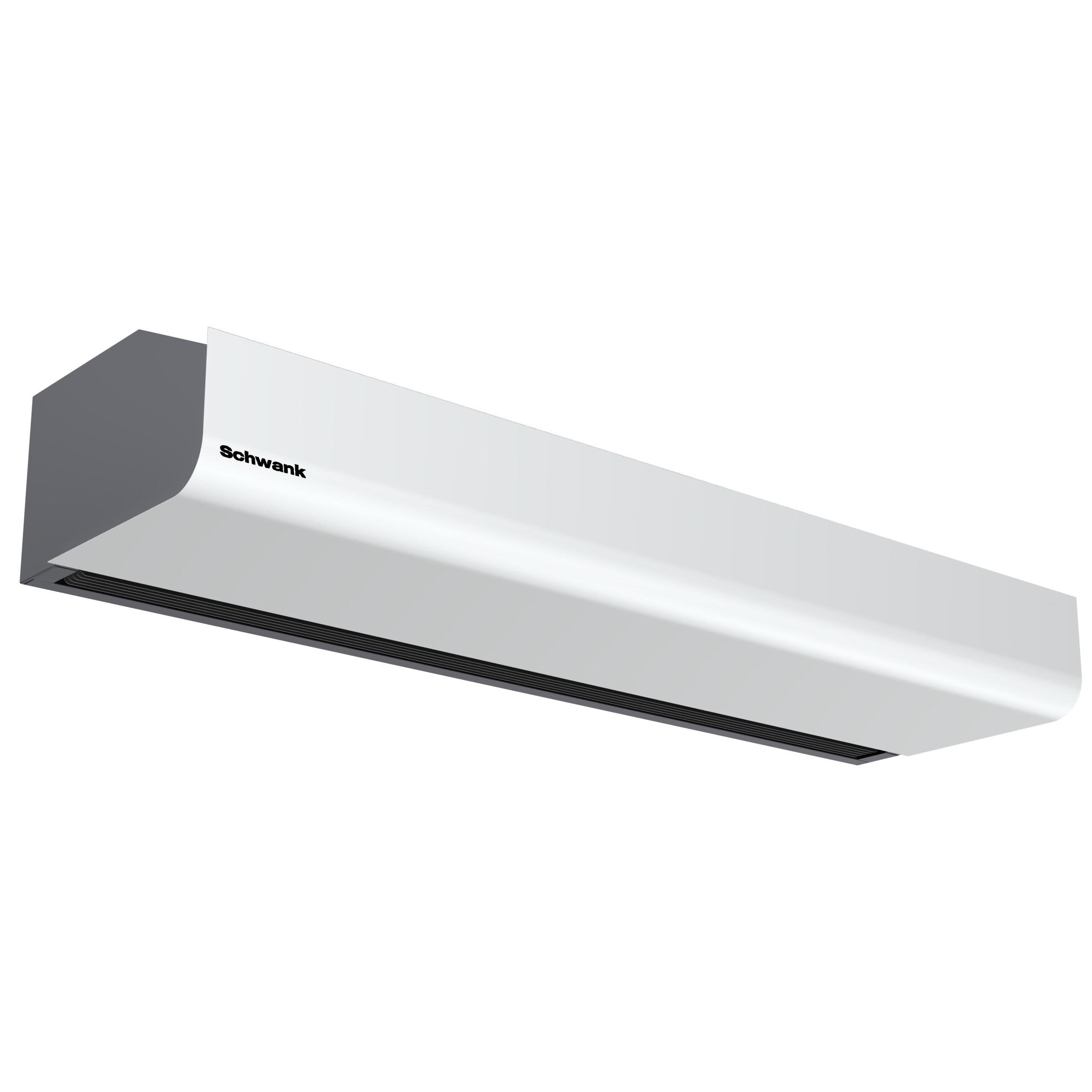

The Schwank Select10 72" Heated Air Curtain (model AC-KE72) offers a powerful combination of performance, efficiency, and contemporary design for commercial entranceways. This premium air curtain provides an invisible barrier of air that maintains interior climate control while allowing unrestricted access through doorways up to 10 feet high.
Performance Specifications
-
Dimensions: 80.7" × 13.6" × 8.3" (Width × Height × Depth)
-
CFM Rating: 1875 cubic feet per minute for exceptional coverage
-
Sound Level: Only 73 dB(A) for quiet operation
-
Heat Output: Available in multiple configurations:
- 208V: 4.1/8.1 kW
- 480V: 5/10 kW
- 600V: 5/10 kW
-
Motor Power: 140W high-efficiency EC motor
-
Weight: 75-79.3 lbs depending on voltage configuration
Key Features
-
Energy Efficiency: Utilizes EC motor technology for reduced power consumption
-
Quick Response: Rapid ramp-up time ensures immediate effectiveness
-
ECO Mode: Smart energy-saving features for reduced operating costs
-
Premium Components: Built with high-quality materials for durability
-
Sleek Design: Modern, streamlined appearance blends seamlessly with any décor
-
Remarkably Quiet: Unique front grill and top air intake design minimize noise and vibration
-
Easy Maintenance: Latched/snap-on front covers provide simple access for servicing
-
Standard Color: White front (RAL9016) with Grey rear (RAL7046)
-
Optional Color: Black available upon request
The Select10 Series comes backed by Schwank's 5-year limited warranty, ensuring long-term reliability and performance. Available accessories include pendulum ceiling bars and brackets for flexible installation options.
Ideal for retail entrances, commercial buildings, and any facility looking to maintain climate control while reducing energy costs, the Schwank Select10 72" Heated Air Curtain combines functionality with aesthetic appeal in one premium package.
